美國CIRS　009CT檢測模體

型號：009CT檢測模體

品牌：美國CIRS

會員價格：面議

聯系方式： 010-68940148

在線解答：

立即咨詢

美國CIRS

Computerized Imaging Reference Systems, Incorporated (CIRS) 公司在1983年以改進現有組織模擬方法和計算機斷層掃描提供定量的參考標準為目標成立了。如今，CIRS被認為是全球領先的等效幻影，放療，醫學成像模擬器以及程序培訓...[查看更多]

瀏覽過此產品的用戶最終購買了

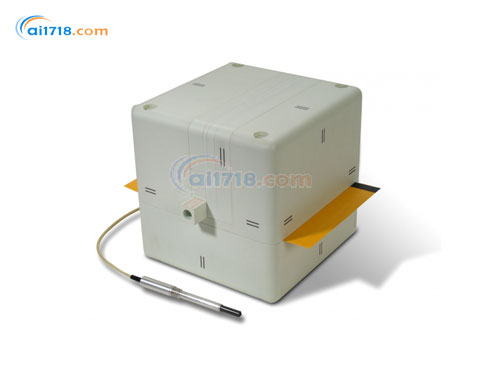

The CIRS Model 009 Cube 20 Phantom was designed for routine QA in RT and IMRT applications where ease of use and quick set-up are important. The Cube 20 phantom is manufactured from Plastic Water® DT which faithfully mimics the linear attenuations of water within 1% from 50 keV to 15 MeV. This enables complete QA from CT image acquisitions to therapy dose verifications. The 20 cm cubic dimension was chosen as a suitable approximation for both head/neck and torso treatments. All the edges are rounded to avoid CT artifacts.

Chamber, diode or MOSFET detectors are easily positioned at isocenter of the cube and laser alignment marks on all sides facilitate precise positioning of the phantom.* Detector position can be adjusted in 1 mm increments longitudinally and 5 mm increments for lateral and elevational adjustments.

Ready-Pac film can be inserted in the Cube. By rotating the cube, the film is easily set in sagital, coronal or transverse orientations.

Stainless steel fiducials are clearly resolvable on CT images and leave small indentations on the film for precise film to plan registration. Upon request, a recess can be milled in the interface surface for darkroom loading of radiographic film 5 x 6".

Features：

?Routine patient QA

?Beam constancy checks

?MLC QA

?User friendly set-up and positioning

?Suitable for head/neck and torso treatments

?Mimics water within 1%

*Customers are encouraged to complete their order with the purchase of the insert option listed below:

009RW-CVXX-XX - Water equivalent cavity block (Plastic Water® DT)

*NOTE: This product or an optional accessory of this product requires a CIRS dosimetry cavity code before an order can be placed. Please refer to the Dosimetry Cavity Codes document to identify the CIRS code for the probe you intend to use with this product.
